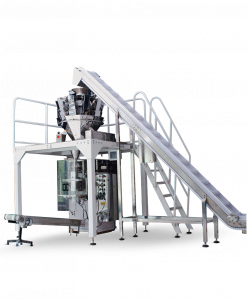

Prepac works closely with numerous scale manufacturers who are leaders in their respective domains. Our sales consultants can provide you with the right solutions that meet your specific needs. All weighers are customized by our original equipment manufacturer (OEM) and are installed and synchronized with our vertical form fill and seal (VFFS) machines. We work with reputable companies such as Ashida, Yamato, Bilwinco, Multipond just to name a few.
| Output Quantity | 15 g – 1000g |
| Output | 30-85 packs/min |
| Filler Accuracy | ± 5 gm to 5 g |
| Pack / Quantity Range Min. Bag size (W x L) approx Max. Bag size (W x L) approx |
120 mm x 150 mm 225 mm x 350 mm |
| Packaging Material | Co-extruded 3 or 5 Layer PE Based or Laminated, Metalize, Aluminum Foil 40 to 120 microns |
| Film Reel | Core dia 76 mm & Reel diameter 300 mm max |
| Electrical Requirement | |
| Input Supply | 220 or 380 V AC, 50 Hz, 3 ph + N + G |
| Connected Load | 3.5 KVA |
| Peak Power Rating | 3 KW |
| Air Requirement | |
| Air Pressure | 6 bar constant dry air |
| Air consumption | 800 ltr/mnt |
| Machine Dimensions along with conveyor (W x D x H) approx. |
1110 mm x 1700 mm 2438 mm
|
| Weight | 700 kgs (Net) |
| Suitable for Packing | Potato Chips, Snacks ,Rice, Macaronis Beans, Pasta, Dry Fruits, Vermicelli, Candies & Confectionery products as well as all kinds of light weight products. |
|
Types of Products      |
